Technical capacity

Our measurements, in the order a buyer asks for them. These numbers decide which line your part fits.

Tunnel oven length 30 m With filter system
Total conveyor line 402 m NOSAB 168 m · Alaaddinbey 234 m
Hanger/bar capacity 240 kg Per hanger
Pretreatment stages 6 Including nano conversion
Box-type booth 1,5 × 1,8 × 6,5 m W × H × L
Box-type oven 1,5 × 1,8 × 6,5 m Single door
Total enclosed production area 4.200 m² NOSAB 2,000 m² · Alaaddinbey 2,200 m²
Total open area 2.100 m² NOSAB 800 m² · Alaaddinbey 1,300 m²
Employees 50+ Across both plants
Production facilities 2 NOSAB and Alaaddinbey

What these numbers mean

402 metre konveyör, 240 kg askı. Conveyor length sets how many parts are on the line at once; hanger capacity sets the weight that can hang at a time. For heavy parts the hanger capacity is the limit, not the total line length. The 402-metre total is split across two plants: 168 metres at NOSAB, 234 at Alaaddinbey.

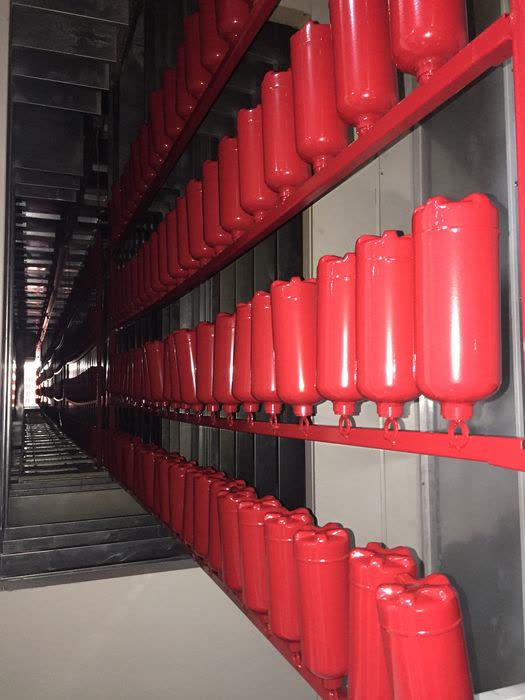

30 metre tünel fırın. Oven length, together with conveyor speed, sets how long the part stays at regime temperature. Full polymerisation of the powder depends on that time.

1,5 × 1,8 × 6,5 m box tipi. This is the size limit for one-off or small-batch work that cannot hang on the conveyor. For parts outside these dimensions, talk to us first.

Describe your part and we will find the right line together

Send us dimensions, material, quantity and the RAL code you want; we will come back with the suitable line and the lead time.

Request a Quote 0 (224) 411 22 16
