Our applications
Five processes, two facilities, one line logic. Each application with the measurement that defines it.
- stage pretreatment
- 6

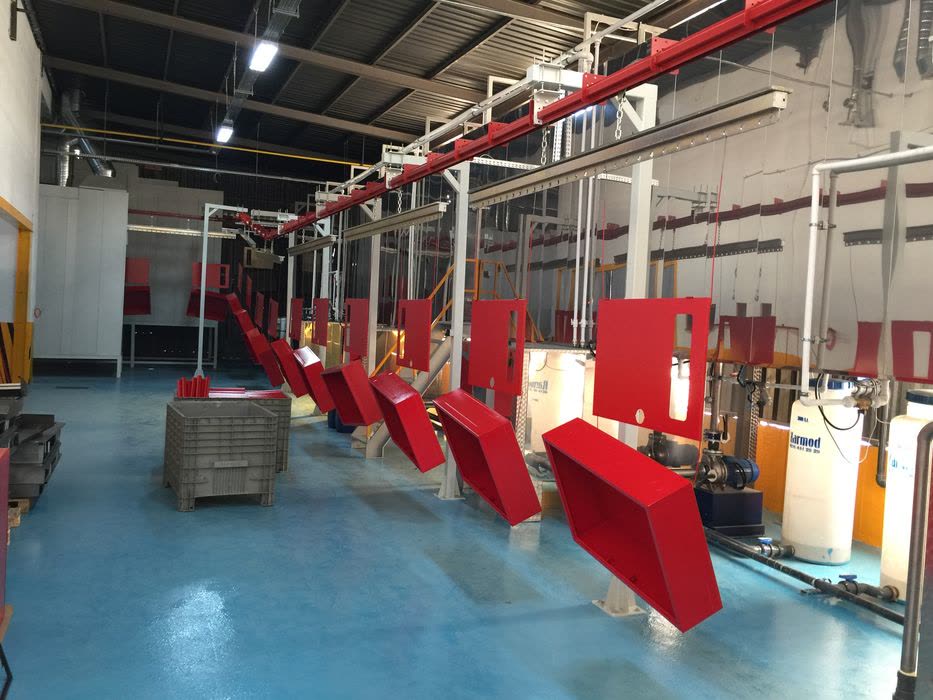

- tunnel oven
- 30 mt
- conveyor line
- 402 mt
- per-hanger capacity
- 240 kg
- enclosed production area
- 4.200 m²
- production plants
- 2
How a part travels the line
The sequence is fixed and every step has a function. Skip a stage and every following stage works on a dirty surface.
Degreasing (alkaline)
Oil and grease left by machining, cutting and handling are dissolved in an alkaline bath. Skip this and every following stage works on a dirty surface.
Rinse
Reduces the chemical carry-over from the alkaline bath. Residual alkali would upset the chemistry of the nano coating bath.
Outer rinse 1
The second rinse lowers conductivity further and prepares the surface for the conversion layer.
Nano conversion coating
A thin conversion layer is left on the surface. It raises corrosion resistance and forms the surface the powder bonds to chemically. It gives a thinner layer and less waste than classic phosphate processes.
Outer rinse 2
Residue carried from the conversion bath is removed, along with salts that would leave marks on the surface.
Drying oven
All water is driven off the surface. A part entering wet prevents powder adhesion and causes blisters in the curing oven.
After pretreatment the part enters the powder booth, then the 30-metre tunnel oven. If there is rust, scale or old paint, it goes through blasting before the line.
Describe your part and we will find the right line together
Send us dimensions, material, quantity and the RAL code you want; we will come back with the suitable line and the lead time.
