Machinery
The equipment that makes up the line. Most of it is invisible on the delivered part, yet all of it decides that part’s life.

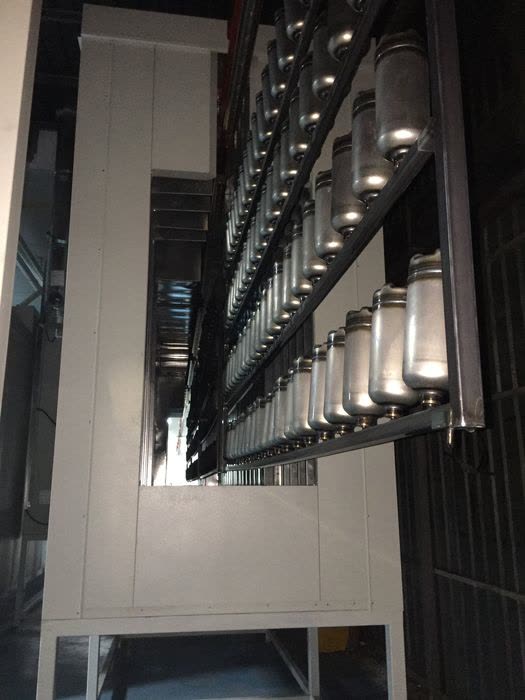

Six-stage spray line
Degrease · rinse · outer rinse · nano coating · outer rinse · drying oven

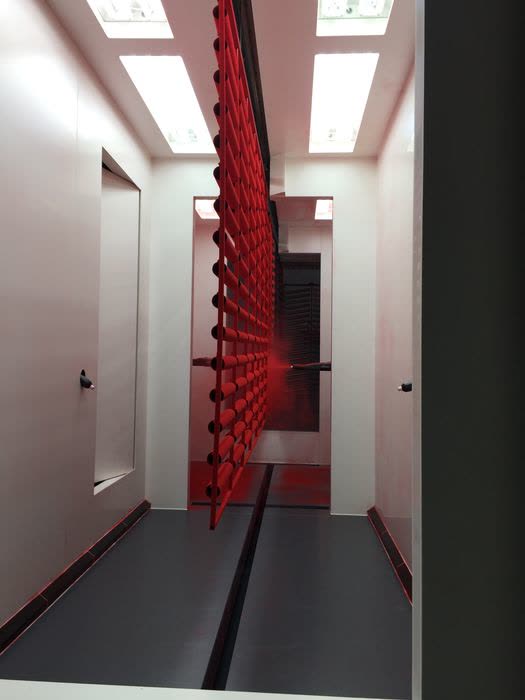

PLC-robot powder booth
Robots operating on vertical and horizontal axes
PVC mono cyclone
Quick colour-change powder recovery system
Climate-controlled coating room
Positive pressure, temperature and humidity controlled

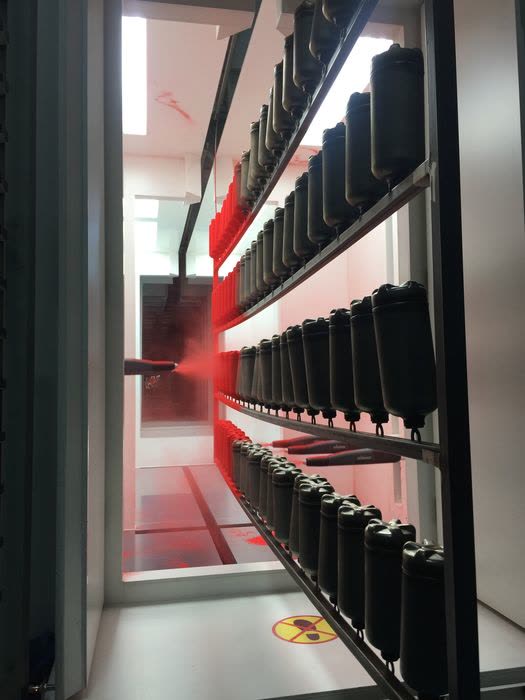

Wagner powder equipment
Automatic and manual guns
Tunnel oven
30 metres, filtered powder curing oven

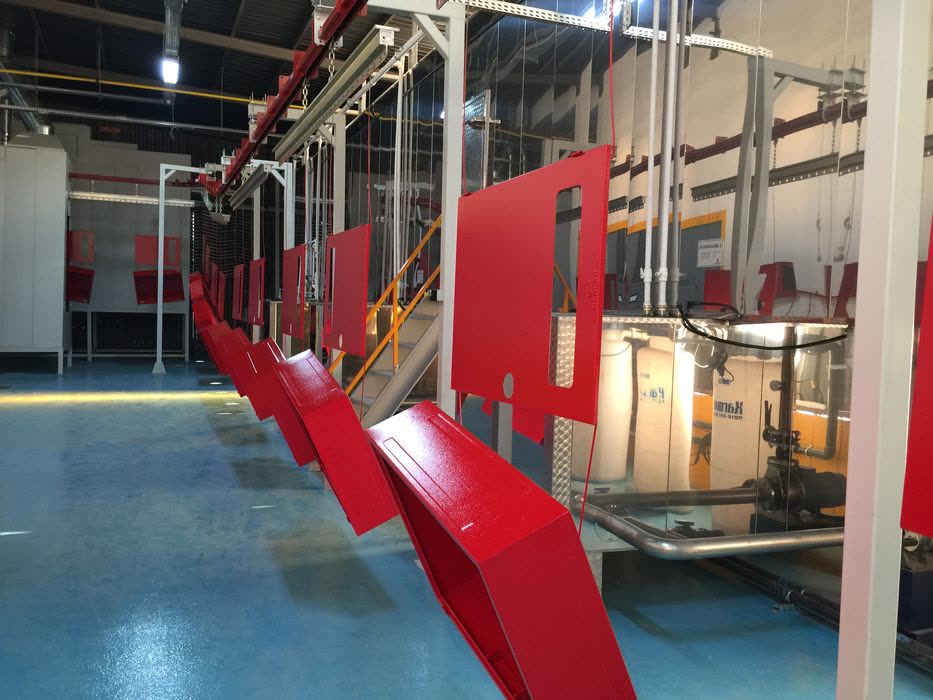

Cardan conveyor
402 metres across both plants, 240 kg per hanger, automatically lubricated
PLC control panel
Controls the entire line from a single point
Box-type booth and oven
1.5 × 1.8 × 6.5 m · single-door oven
Blasting unit
Rust, scale and old coating removal, surface profiling
From the plant
- stage pretreatment
- 6
- tunnel oven
- 30 mt
- conveyor line
- 402 mt
- per-hanger capacity
- 240 kg
- enclosed production area
- 4.200 m²
- production plants
- 2
Describe your part and we will find the right line together
Send us dimensions, material, quantity and the RAL code you want; we will come back with the suitable line and the lead time.
