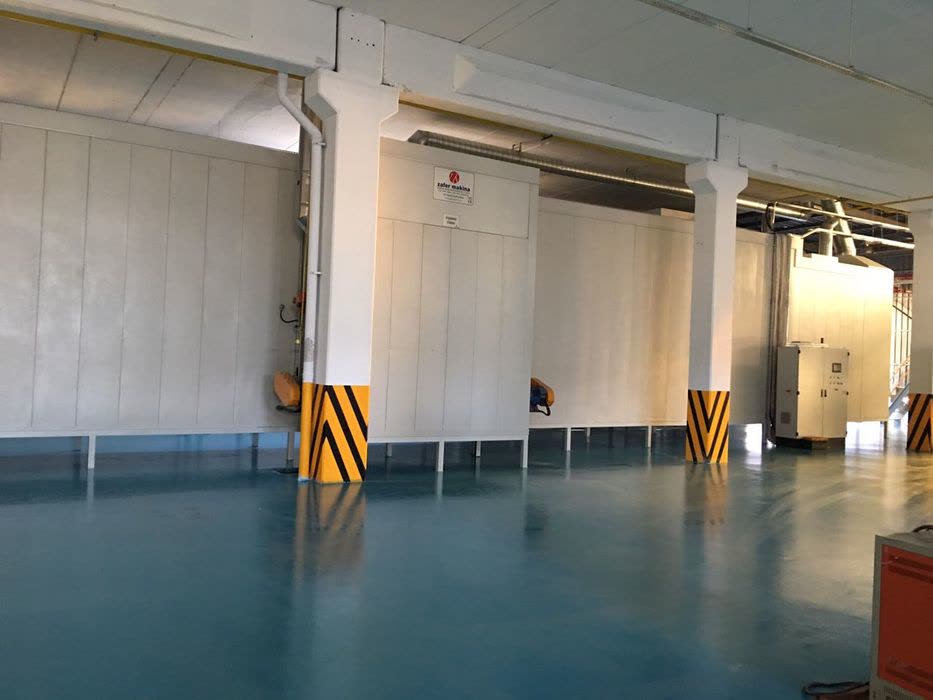

NOSAB Facility
Minareliçavuş OSB Mah. 116. Sok. No:11, Nilüfer / BURSA
2,000 m² enclosed area, 168 metres of conveyor, a team of 35. The tunnel line, spray line and powder booths are here.
- Spray Line
- Powder Coating Booth
- Tunnel Oven
Electrostatic powder coating in Bursa
Two facilities in NOSAB and Alaaddinbey. Six-stage nano pretreatment, PLC-controlled booths and a 30-metre tunnel oven — your part travels one line, from degreasing to curing.
Color Center application chart
Our references
- stage pretreatment
- 6
- tunnel oven
- 30 mt
- conveyor line
- 402 mt
- per-hanger capacity
- 240 kg
- enclosed production area
- 4.200 m²
- production plants
- 2
Five applications, one line
See allEach application with the measurement that defines it. Open a card for detail.
RAL 5015

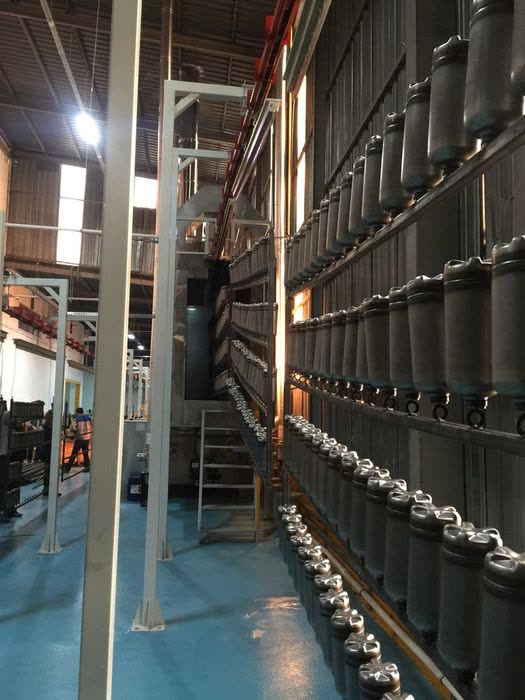

Spray Line
A six-stage nano pretreatment line. This is where the surface the coating will bond to is prepared.
6
stages
RAL 4008
Powder Coating Booth
PLC robots working vertically and horizontally, in a positive-pressure climate-controlled booth.
PLC
robot control
RAL 2004
Tunnel Oven
A 30-metre filtered curing oven on 402 metres of conveyor.
30
metre oven
RAL 6018
Box-Type Booth and Oven
A 1.5 × 1.8 × 6.5 metre booth and single-door box oven — for off-line work.
6,5
metre length
RAL 7016
Sandblasting
Mechanical removal of rust, scale and old coating; matting the surface.
Mechanical
surface removal
Coating life is decided by pretreatment, not by paint
The six stages of our spray line bring the surface to a state where the coating bonds chemically. What each stage does:
Degreasing (alkaline)
Oil and grease left by machining, cutting and handling are dissolved in an alkaline bath. Skip this and every following stage works on a dirty surface.
Rinse
Reduces the chemical carry-over from the alkaline bath. Residual alkali would upset the chemistry of the nano coating bath.
Outer rinse 1
The second rinse lowers conductivity further and prepares the surface for the conversion layer.
Nano conversion coating
A thin conversion layer is left on the surface. It raises corrosion resistance and forms the surface the powder bonds to chemically. It gives a thinner layer and less waste than classic phosphate processes.
Outer rinse 2
Residue carried from the conversion bath is removed, along with salts that would leave marks on the surface.
Drying oven
All water is driven off the surface. A part entering wet prevents powder adhesion and causes blisters in the curing oven.
Two plants, uninterrupted capacity
See allA stoppage on one line does not stop deliveries. NOSAB carries the fully integrated tunnel line; Alaaddinbey carries off-line work and extra capacity.

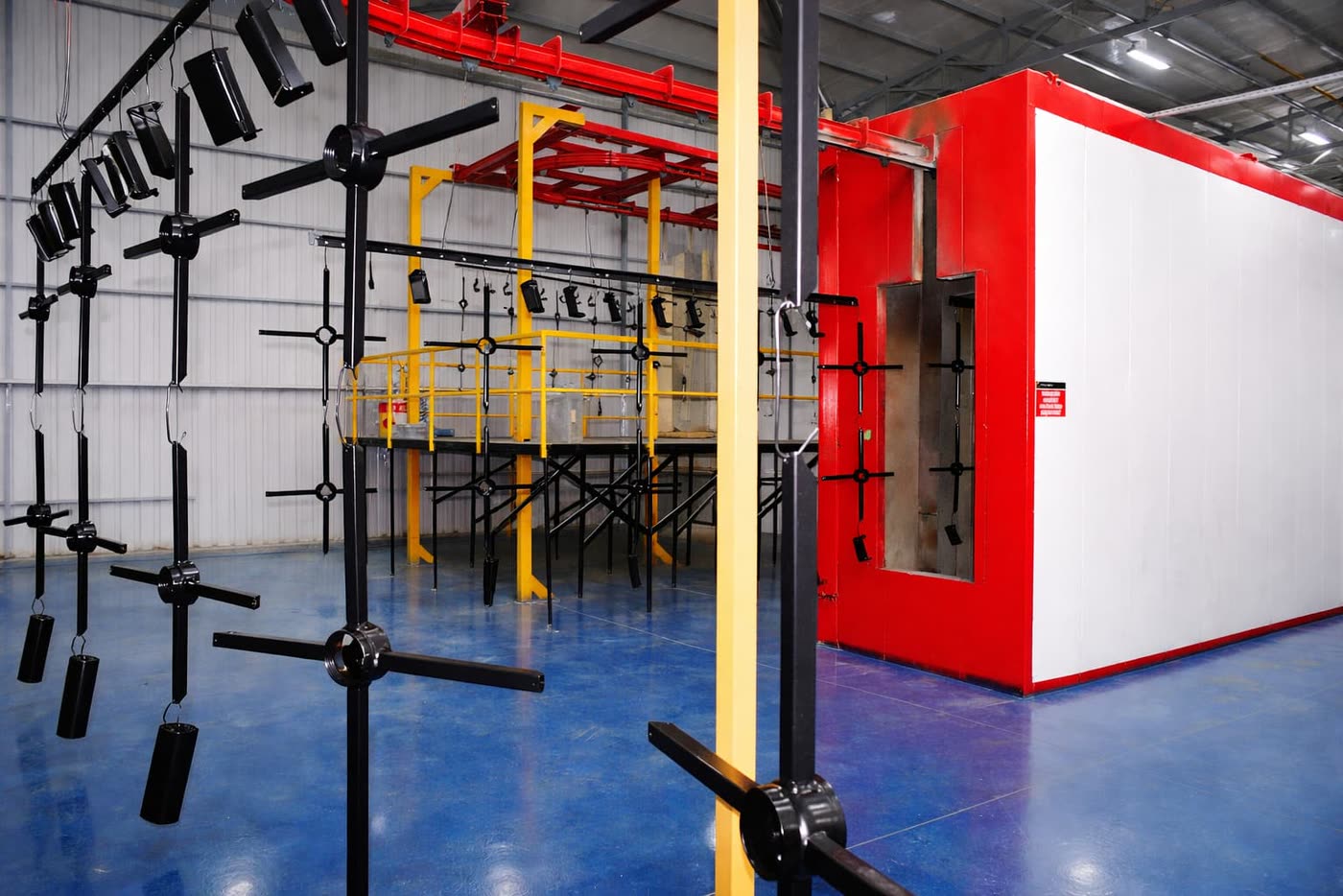

Alaaddinbey Facility
Alaaddinbey Mah. Alaaddinbey Köy Yolu Cad. No:37/1, Nilüfer / BURSA
2,200 m² enclosed area, 234 metres of conveyor, a team of 40. Alongside the tunnel line and spray line, sandblasting and the box-type booth and oven are here.
- Spray Line
- Tunnel Oven
- Box-Type Booth and Oven
- Sandblasting

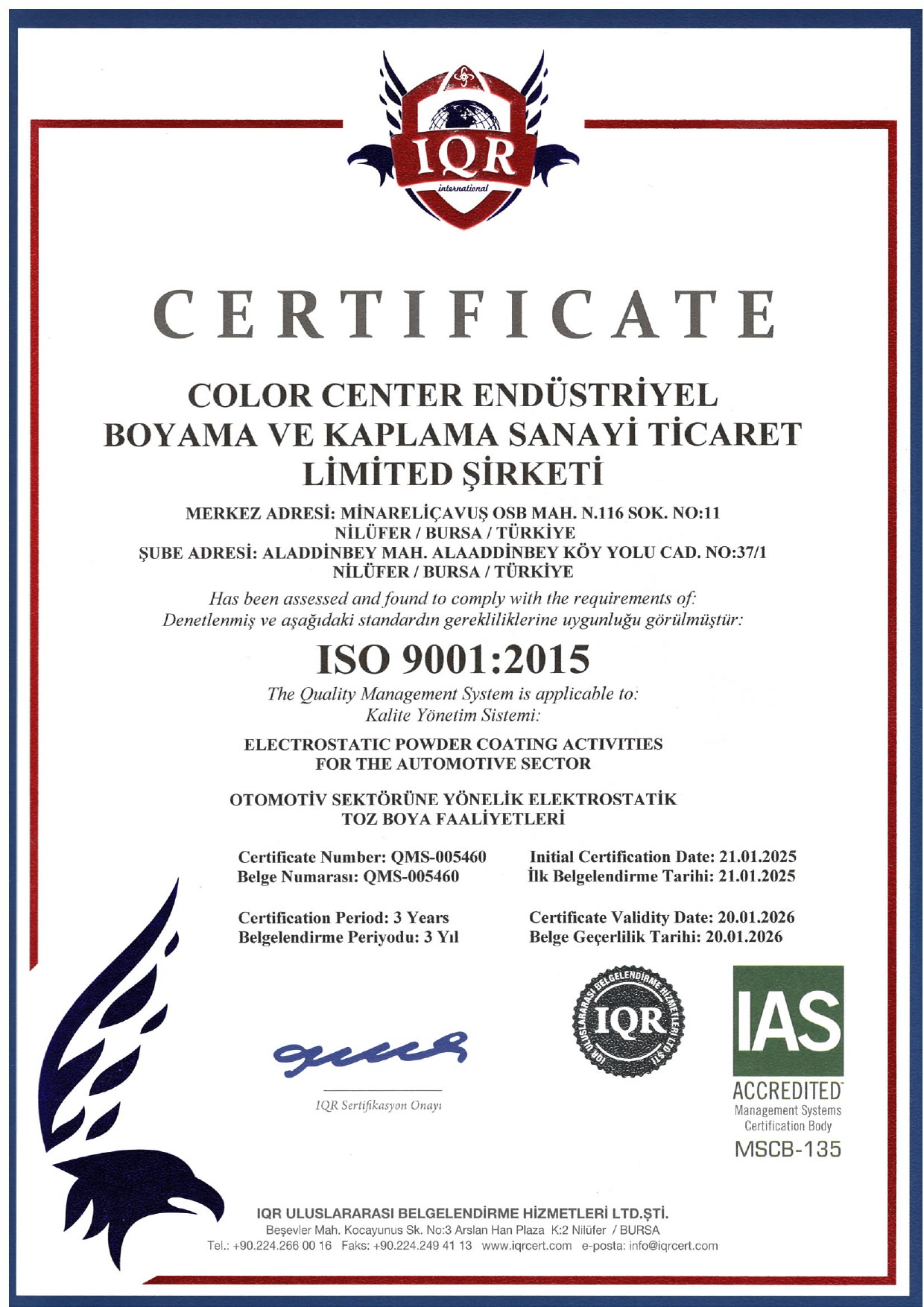

Quality is a controlled process
Our Quality Policy has six clauses, and our Quality Management System is reviewed with periodic checks.
Customer satisfaction
Following change
Full participation of our employees
Competitive advantage
Cooperation with suppliers
Continuous improvement
Electrostatic powder coating activities for the automotive sector
Knowledge centre
See allTechnical articles that help when choosing powder coating and requesting a quote.
What Is Electrostatic Powder Coating?
How the method works, why it is preferred and what advantages it offers.
Read the full article
Electrostatic Powder Coating and Industrial Painting in Bursa NOSAB
The place of the Bursa NOSAB Alaaddinbey region in industrial coating, and where Color Center sits.
Read the full article
Powder Coating or Wet Paint? A Decision Table
The two methods compared across ten criteria, and which is right for which job.
Read the full article
Describe your part and we will find the right line together
Send us dimensions, material, quantity and the RAL code you want; we will come back with the suitable line and the lead time.
