Powder Coating Booth

PLC robots working vertically and horizontally, in a positive-pressure climate-controlled booth.

RAL 4008

Even powder distribution is the job of airflow and programming, not of hand. Our booths run with PLC-controlled robots, a positive-pressure climate-controlled room and a quick colour-change cyclone system.

The air inside the booth decides where the powder goes. A positive-pressure climate-controlled room keeps outside dust out and holds temperature and humidity steady; when those two variables move, the same recipe stops giving the same result.

PLC robots working on vertical and horizontal axes are programmed to the part geometry. Automatic and manual Wagner equipment are used together: series parts by robot, complex geometries and touch-up with a manual gun.

The PVC mono cyclone shortens colour changes. Changing colour between small batches is the most expensive item of line downtime; the system was chosen to reduce it.

From the facility

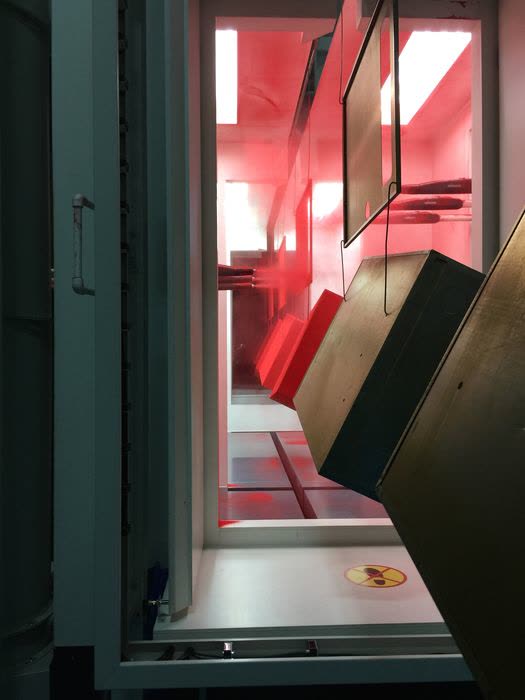

Powder Coating Booth — Color Center

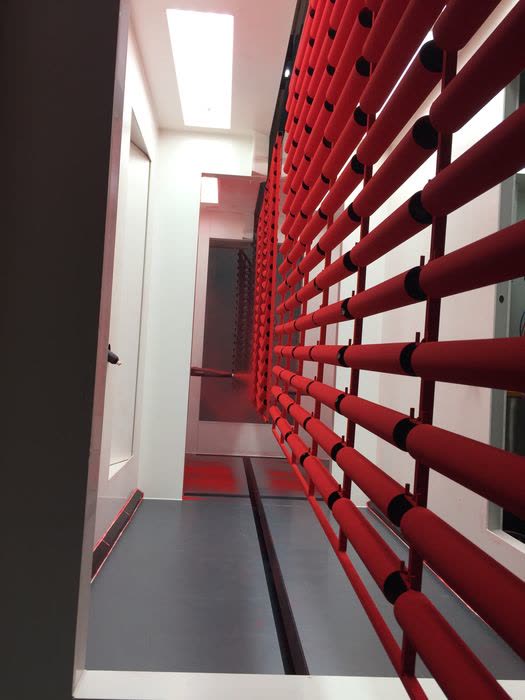

Powder Coating Booth — Color Center
Powder Coating Booth — Color Center
Powder Coating Booth — Color Center

Other applications

RAL 5015 Spray Line A six-stage nano pretreatment line. This is where the surface the coating will bond to is prepared. 6 stages RAL 2004 Tunnel Oven A 30-metre filtered curing oven on 402 metres of conveyor. 30 metre oven RAL 6018 Box-Type Booth and Oven A 1.5 × 1.8 × 6.5 metre booth and single-door box oven — for off-line work. 6,5 metre length RAL 7016 Sandblasting Mechanical removal of rust, scale and old coating; matting the surface. Mechanical surface removal

Describe your part and we will find the right line together

Send us dimensions, material, quantity and the RAL code you want; we will come back with the suitable line and the lead time.
